特点：Features   利用胀套联接的膜片型联轴器。 Using locking assemblies connect plate springs coupling. 零回转间隙，拆装方便。 Zero backlash , disassembles conveniently. 高灵敏度，传递力矩大。 Excellent response and high torque capacity. 顺/逆时针回转特性完全相同。 Identical clockwise and counter-clockwise rotational characteristics. 不锈钢膜片补偿径向,角向和轴向偏差。 Stainless steel plate springs absorb parallel, angular and shaft end-play misalignments. 适用于伺服电机，减速电机，步进电机等联接。 Is suitable in servo motor, Speed Reducer ,Stepping Motor.

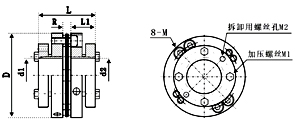

结构图：

选型指导:Ordering lnformation

例：ZMJ-94-28/48TT           ZMJ：系列号，材料为45#钢           94: 94为外径尺寸94mm          28：d1轴径为28mm          48：d2轴径为48mm          n 请参考下图参数表 Example:ZMJ-94-28/48TT          MMJ: Material:45# Steel         94:Outside dimension 94mm         28:d1 Bore: 28mm         48: d2 Bore: 48mm

                              ZMJ型单节胀套膜片联轴器尺寸表
     ZMJ-single-node Steel Locking Assemblies Type Flexible Coupling Dimensions

备注：内孔在d2范围内均可做。
