特点：Features     超强弹性扭矩可吸收振动、补尝径向、角向和轴向偏差。 Ultra flexible torque can absorb vibration, parallel, angular misalignments and shaft end-play. 抗油及电气绝缘、主体采用阳极表面处理。 Exhibits excellent electrical insulation, The main body uses the anode surface treatment. 有两种不同硬度弹性体（黄/红）可供选择。 Two kind of different degree of hardness elastomer (yellow/red) may supply the choice. 免维护、小扭矩时无回转间隙. No maintenance, Zero backlash in low torque application. 顺、逆时针回转特性完全相同。 Identical clockwise and counter-clockwise rotational characteristics 适用于减速机、伺服电机、数控机床。 Is suitable in Speed reducer, Servo motor, CNC Machine.

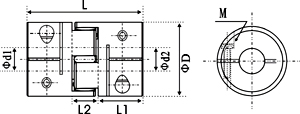

结构图：

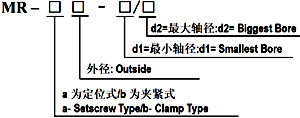

选型指导:Ordering lnformation

例：MR-b40-14/24           MR：系列号，材料为铝合金           b40:b为夹紧型，40为外径尺寸40mm          14：d1轴径为14mm          24：d2轴径为24mm          n 请参考下图参数表 Example:MR–b40–14/24                   MR: Series NO, Material: Aluminum Alloy                  b40:b- Clamp Type, Outside dimension 40mm                  14:d1 Bore: 14mm                  24: d2 Bore: 24mm

MR型夹紧梅花联轴器尺寸表
MK-Clamp Curved Jaw Type Flexible Coupling Dimensions
