特点：Features     一体成型的金属弹性联轴器。 One-piece metallic spring coupling. 适用较小力矩的轴联接，零回转间隙。 Suitable in small moment of force axis joint, Zero backlash. 弹性作用补偿径向、角向和轴向偏差。 Absorption of parallel, angular and shaft end-play misalignments. 顺、逆时针回转特性完全相同。 Identical clockwise and counter-clockwise rotational characteristics. 定位螺丝或夹紧螺丝。 Setscrew type or clamp type. 适用于步进电机、编码器。 Is suitable in Stepping Motor, enclder.

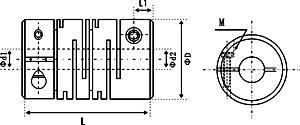

结构图：

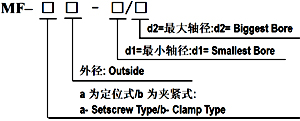

选型指导:Ordering lnformation

例：MF–b32–10/14           MF：系列号，材料为铝合金           b32:b为夹紧型，32为外径尺寸32mm          10：d1轴径为10mm          14：d2轴径为14mm          n 请参考下图参数表 Example:MF–b32–10/14                   MF: Series NO, Material: Aluminum Alloy                 b32:b- Clamp Type, Outside dimension 32mm                  10:d1 Bore: 10mm                 14: d2 Bore: 14mm

MF型夹紧平行式联轴器尺寸表
MF- Clamp Parallel Slit Type Flexible Coupling Dimensions

备注：内孔在d2范围内均可做。
