MF型定位平行式联轴器 MF-Setscrew Parallel Slit Type Flexible Coupling
特点:Features
一体成型的金属弹性联轴器。
One-piece metallic spring coupling.
适用较小力矩的轴联接,零回转间隙。
Suitable in small moment of force axis joint, Zero backlash.
弹性作用补偿径向、角向和轴向偏差。
Absorption of parallel, angular and shaft end-play misalignments.
顺、逆时针回转特性完全相同。
Identical clockwise and counter-clockwise rotational characteristics.
定位螺丝或夹紧螺丝。
Setscrew type or clamp type.
适用于步进电机、编码器。
Is suitable in Stepping Motor, enclder. |

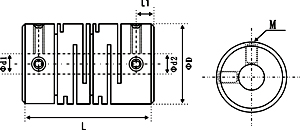

结构图:
|
选型指导:Ordering lnformation |
例:MF–a32–10/14 MF:系列号,材料为铝合金
a32:a为定位型,32为外径尺寸32mm
10:d1轴径为10mm
14:d2轴径为14mm
n 请参考下图参数表
Example:MF–a32–10/14
MF: Series NO, Material: Aluminum Alloy
a32:a- Setscrew Type, Outside dimension 32mm
10:d1 Bore: 10mm
14: d2 Bore: 14mm |
MF型定位平行式联轴器尺寸表
MF- Setscrew Parallel Slit Type Flexible Coupling Dimensions
MF型号
MF Model |
d1-d2范围
d1-d2 Bore Scope |
尺寸
Dimensions(mm) |
固定螺丝
Clamp Screw | |||
D |
L |
L1 |
M |
拧紧力矩
Wrench Torque (N.m) | ||
MF-a16-d1/d2 |
3 4 5 6 7 |
16 |
23 |
3.0 |
M3 |
0.7 |
MF-a20-d1/d2 |
5 6 6.35 8 10 |
20 |
26 |
3.0 |
M4 |
0.7 |
MF-a25-d1/d2 |
5 6 6.35 8 10 12 |
25 |
31 |
3.5 |
M4 |
2.5 |
MF-a32-d1/d2 |
10 11 12 12.7 13 14 |
32 |
41.0 |
6.0 |
M4 |
2.5 |
MF-a42-d1/d2 |
12 13 14 15 16 18 |
42 |
50.0 |
8.5 |
M5 |
4.0 |
MF-a50-d1/d2 |
14 15 16 18 19 20 |
50 |
71.0 |
11.0 |
M6 |
8.0 |
MF-a63-d1/d2 |
14 15 16 18 19 22 24 |
63 |
90.0 |
13.0 |
M8 |
16.0 |
MF-a150-d1/d2 |
3 4 5 |
15.5 |
23.0 |
3.0 |
M3 |
0.7 |
MF-a170-d1/d2 |
4 5 6 |
17.5 |
23.0 |
3.0 |
M3 |
0.7 |
MF-a190S-d1/d2 |
5 6 6.35 8 |
19.5 |
19.1 |
3.0 |
M4 |
1.7 |
MF-a190-d1/d2 |
5 6 6.35 8 |
19.5 |
24.5 |
3.0 |
M4 |
1.7 |
MF-a250-d1/d2 |
5 6 6.35 8 10 |
24.5 |
25.4 |
3.5 |
M4 |
2.5 |
MF-a280-d1/d2 |
6 8 9.525 10 12 12.7 |
28.6 |
28.6 |
3.9 |
M4 |
4.0 |
MF-a380-d1/d2 |
8 10 12 12.7 14 15 |
38.1 |
38.1 |
4.5 |
M5 |
4.0 |
MF-a500-d1/d2 |
12 12.7 14 16 18 19 |
50.8 |
50.8 |
5.5 |
M6 |
8.0 |
备注:内孔在d2范围内均可做。
MF- Setscrew Parallel Slit Type Flexible Coupling Technical Data
MF型号
MF Model |
扭矩Torque |
纠偏值
Perm. displacements |
扭矩刚性
Torsional Stiffness
(N.m / rad) |
最高转速
Max.speed
(rpm) |
惯性力矩
Moment of Inertia
(kg.m2) |
重量
Weight
(g) | |||
额定Rated
(N.m) |
最大Max
(N.m) |
角向Angular
( °) |
轴向Axial
(mm) |
径向Parallel
(mm) | |||||
MF-a16-d1/d2 |
0.8 |
1.6 |
1.5 |
±0.30 |
0.1 |
46 |
22000 |
3.2×10-7 |
8 |
MF-a20-d1/d2 |
1.1 |
2.2 |
1.5 |
±0.30 |
0.1 |
115 |
18000 |
8.8×10-6 |
16 |
MF-a25-d1/d2 |
1.4 |
2.8 |
1.5 |
±0.30 |
0.15 |
165 |
14000 |
2.5×10-6 |
28 |
MF-a32-d1/d2 |
2.8 |
5.6 |
1.5 |
±0.30 |
0.15 |
270 |
4600 |
9.6×10-6 |
62 |
MF-a42-d1/d2 |
6.3 |
12.6 |
1.5 |
±0.30 |
0.2 |
365 |
3600 |
3.2×10-5 |
138 |
MF-a50-d1/d2 |
11 |
22 |
1.5 |
±0.30 |
0.2 |
580 |
3000 |
9.0×10-5 |
270 |
MF-a63-d1/d2 |
22.0 |
44.0 |
1.5 |
±0.30 |
0.2 |
850 |
2200 |
3.1×10-4 |
505 |
MF-a150-d1/d2 |
0.2 |
0.4 |
1.8 |
±0.15 |
0.1 |
35 |
13000 |
3.2×10-7 |
11 |
MF-a170-d1/d2 |
0.3 |
0.6 |
1.8 |
±0.25 |
0.1 |
63 |
12000 |
6.1×10-7 |
12 |
MF-a190S-d1/d2 |
0.4 |
0.8 |
1.8 |
±0.25 |
0.1 |
108 |
10000 |
8.0×10-7 |
13 |
MF-a190-d1/d2 |
0.4 |
0.8 |
1.8 |
±0.25 |
0.1 |
102 |
10000 |
9.0×10-7 |
14 |
MF-a250-d1/d2 |
1.2 |
2.4 |
1.8 |
±0.20 |
0.1 |
175 |
10000 |
2.5×10-6 |
29 |
MF-a280-d1/d2 |
1.6 |
3.2 |
1.8 |
±0.20 |
0.1 |
255 |
8000 |
8.8×10-6 |
45 |
MF-a380-d1/d2 |
4.2 |
8.8 |
1.8 |
±0.20 |
0.15 |
340 |
8000 |
3.0×10-5 |
78 |
MF-a500-d1/d2 |
9.0 |
18.0 |
1.8 |
±0.20 |
0.15 |
560 |
6000 |
9.6×10-5 |
345 |
说明:Explanation:
特殊孔径和键槽可按需求加工,请与我们联系. Bore and keyway modifications are available on request, Please take advantage of our bore modification services.
