特点：Features     高扭矩刚性和灵敏性、零回转间隙。 High torque stiffness and response, zero backlash. 不锈钢波纹管，可耐高温、免维护。 Stainless steel plate bellows,but thermostable,no maintenance. 波纹管具有超强纠偏性。 Bellows has ultra strong corrects an error ability. 顺、逆时针回转特性完全相同。 Identical clockwise and counter-clockwise rotational characteristics. 适用于伺服电机、机器手、数控机床。 Is suitable in servo motor, Machinist, CNC Machine.	结构图：

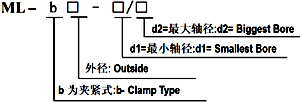

选型指导:Ordering lnformation	例:ML–b54–08/25            ML：系列号，材料为铝合金           b54:b为夹紧型，54为外径尺寸54mm           08：d1轴径为08mm           25：d2轴径为25mm          n  请参考下图参数表 Example:ML–b54–08/25                   ML: Series NO, Material: Aluminum Alloy                  b54:b- Clamp Type, Outside dimension 54mm                  08:d1 Bore: 08mm                  25: d2 Bore: 25mm

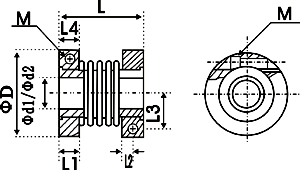

                                   ML型大扭力波纹管联轴器尺寸表
                       ML- High Torsion Bellows Type Flexible Coupling Dimensions
