特点：Features   利用键槽联接的膜片型联轴器。 Using keyway connect plate springs coupling. 零回转间隙，拆装方便。 Zero backlash , disassembles conveniently. 高灵敏度，传递力矩大。 Excellent response and high torque capacity. 顺/逆时针回转特性完全相同。 Identical clockwise and counter-clockwise rotational characteristics. 不锈钢膜片补偿径向,角向和轴向偏差。 Stainless steel plate springs absorb parallel, angular and shaft end-play misalignments. 适用于伺服电机，减速电机，步进电机等联接。 Is suitable in servo motor, Speed Reducer ,Stepping Motor.

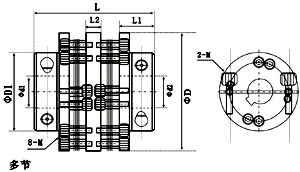

结构图：

选型指导:Ordering lnformation

例：MMJ-b126-35/50JT           MMJ：系列号，材料为45#钢           b126:b为夹紧型，126为外径尺寸126mm          35：d1轴径为35mm          50：d2轴径为50mm          n 请参考下图参数表 Example:MMJ-b126-35/50JT          MMJ: Material:45# Steel         b126:b- Clamp Type,                 Outside dimension 126mm         35:d1 Bore: 35mm         50: d2 Bore: 50mm

                                    MMJ型多节钢质膜片联轴器尺寸表
         MMJ-Multisection Steel Lamina Plate Springs Type Flexible Coupling Dimensions
