特点：Features     法兰膜片型弹性联轴器零回转间隙。 Metal disk type flexible coupling zero backlash. 具有高扭矩刚性、更高灵敏性。 Has the high torque capacity, higher sensitivity. 不锈钢片有较强的补偿径向、角向和轴向偏差。 Stainless steel plate springs absorb parallel, angular and shaft end-play misalignments. 顺、逆时针回转特性完全相同。 Identical clockwise and counter-clockwise rotational characteristics. 弹性体为不锈钢膜片。 Elastomer for stainless steel plate. 适用于伺服电机、机器手、数控机床. Is suitable in servo motor, Machinist, CNC Machine.

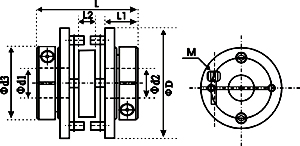

结构图：

选型指导:Ordering lnformation

例：MJ–b56–14/20JT           MJ：系列号，材料为铝合金           b56:b为夹紧型，56为外径尺寸56mm          14：d1轴径为14mm          20：d2轴径为20mm          n 请参考下图参数表 Example:MJ–b56–14/20JT                   MJ: Series NO, Material: Aluminum Alloy                  b56:b- Clamp Type, Outside dimension 56mm                  14:d1 Bore: 14mm                  20: d2 Bore: 20mm

MJ型多节法兰膜片联轴器尺寸表
MJ- Multisection Metal Disk Type Flexible Coupling Dimensions
