特点：Features

超强弹性扭矩可吸收振动、补尝径向、角向和轴向偏差。
Ultra flexible torque can absorb vibration, parallel, angular misalignments and shaft end-play.
抗油及电气绝缘、主体采用阳极表面处理。
Exhibits excellent electrical insulation, The main body uses the anode surface treatment.
有两种不同硬度弹性体（黄/红）可供选择。
Two kind of different degree of hardness elastomer (yellow/red) may supply the choice.
免维护、小扭矩时无回转间隙.
No maintenance, Zero backlash in low torque application.
顺、逆时针回转特性完全相同。
Identical clockwise and counter-clockwise rotational characteristics
适用于减速机、伺服电机、数控机床。
Is suitable in Speed reducer, Servo motor, CNC Machine.

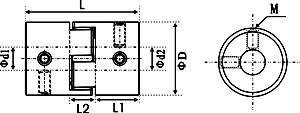

   结构图：

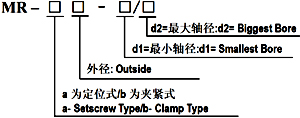

选型指导:Ordering lnformation

例：MR–a40–14/24
            MR:系列号，材料为铝合金
           a40:a为定位式，40为外径尺寸40mm
          14：d1轴径为14mm
           24：d2轴径为24mm
  n 请参考下图参数表
Example: MR–a40–14/24
        MR: Series NO, Material: Aluminum Alloy
       a40:a-Setscrew Type, Outside dimension 40mm
       14:d1 Bore: 14mm
       24: d2 Bore: 24mm
