产品详细介绍：
MK型多节圆形膜片联轴器 MK-Multisection Disc Plate Springs Type Flexible Coupling
|
特点：Features
结构紧凑、体积小、惯性低、零回转间隙。
Compact type, volume small, inertia low, zero backlash.
具有高扭矩刚性、更高灵敏性。
Has the high torque capacity, higher sensitivity.
不锈钢片有较强的补偿径向、角向和轴向偏差。
Stainless steel plate springs absorb parallel, angular and shaft end-play misalignments.
顺、逆时针回转特性完全相同。
Identical clockwise and counter-clockwise rotational characteristics.
适用于伺服电机、步进电机、机器手。
Is suitable in servo motor, Stepping Motor, Machinist. |

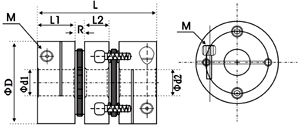

结构图：
|
|

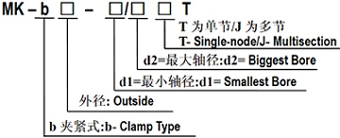

选型指导:Ordering lnformation
|
例：MK–b39–10/16JT MK：系列号，材料为铝合金
b39:b为夹紧型，39为外径尺寸39mm
10：d1轴径为10mm
16：d2轴径为16mm
n 请参考下图参数表
Example:MK–b39–10/16JT
MK: Series NO, Material: Aluminum Alloy
b39:b- Clamp Type, Outside dimension 39mm
10:d1 Bore: 10mm
16: d2 Bore: 16mm |
MK型多节圆形膜片联轴器尺寸表
MK-Multisection Disc Plate Springs Type Flexible Coupling Dimensions
|
MK型号
MK Model |
d1-d2范围
d1-d2 Bore Scope |
尺寸
Dimensions (mm) |
固定螺丝
Clamp Screw | |||||
|
D |
L |
L1 |
L2 |
R |
M |
拧紧力矩
Wrench Torque | ||
|
MK-b26-d1/d2JT |
5 6 8 9.525 10 |
26 |
37.0 |
11.5 |
7.0 |
3.5 |
M3 |
1.5 |
|
MK-b34-d1/d2JT |
8 9.525 10 12 12.7 14 |
34 |
47.0 |
14.0 |
10.6 |
4.2 |
M4 |
1.5 |
|
MK-b39-d1/d2JT |
10 12 12.7 13 14 16 |
39 |
51.0 |
15.0 |
10.8 |
5.1 |
M4 |
2.5 |
|
MK-b44-d1/d2JT |
12 12.7 14 15 16 19 |
44 |
52.0 |
15.0 |
11.0 |
5.5 |
M4 |
2.5 |
|
MK-b56-d1/d2JT |
14 15 16 19 20 22 24 |
56 |
65.0 |
20.0 |
13.0 |
6.0 |
M5 |
7.0 |
|
MK-b68-d1/d2JT |
18 19 22 24 28 30 35 |
68 |
76.0 |
24.0 |
15.0 |
6.5 |
M6 |
12.0 |
|
MK-b82-d1/d2JT |
24 28 30 32 35 38 40 |
82 |
100.0 |
30.0 |
24.0 |
8.0 |
M8 |
16.0 |
备注：内孔在d2范围内均可做。
MK型多节圆形膜片联轴器技术参数表
MK- Multisection Disc Plate Springs Type Flexible Coupling Technical Data
|
MK型号
MK Model |
扭矩
Torque |
纠偏能力
Perm. displacements |
扭矩刚性
Torsional Stiffness (N.m / rad) |
最高转速
Max.speed(rpm) |
惯性力矩
Moment of lnertia(kg.m2) |
重量
Weight(g) | |||
|
额定Rated（N.m） |
最大
Max（N.m） |
角向Angular( °) |
轴向Axial(mm) |
径向Parallel(mm) | |||||
|
MK-b26-d1/d2JT |
1.4 |
2.8 |
1.2 |
±0.4 |
0.05 |
850 |
10000 |
3.3×10-6 |
36 |
|
MK-b34-d1/d2JT |
2.8 |
5.6 |
1.5 |
±0.4 |
0.05 |
1790 |
10000 |
8.9×10-6 |
75 |
|
MK-b39-d1/d2JT |
5.8 |
11.6 |
1.5 |
±0.4 |
0.05 |
4000 |
10000 |
2.4×10-5 |
120 |
|
MK-b44-d1/d2JT |
8.7 |
17.4 |
1.8 |
±0.4 |
0.05 |
4800 |
10000 |
3.2×10-5 |
146 |
|
MK-b56-d1/d2JT |
25 |
50 |
1.8 |
±0.4 |
0.05 |
9800 |
10000 |
1.1×10-4 |
300 |
|
MK-b68-d1/d2JT |
55 |
110 |
1.8 |
±0.4 |
0.05 |
16500 |
10000 |
2.8×10-4 |
560 |
|
MK-b82-d1/d2JT |
80 |
160 |
1.8 |
±0.4 |
0.05 |
19800 |
10000 |
1.0×10-3 |
1008 |
说明：Explanation:
特殊孔径和键槽可按需求加工，请与我们联系. Bore and keyway modifications are available on request, Please take advantage of our bore modification services.
