特点：Features     结构紧凑、体积小、惯性低、零回转间隙。 Compact type, volume small, inertia low, zero backlash. 具有高扭矩刚性、更高灵敏性。 Has the high torque capacity, higher sensitivity. 不锈钢片有较强的补偿径向、角向和轴向偏差。 Stainless steel plate springs absorb parallel, angular and shaft end-play misalignments. 顺、逆时针回转特性完全相同。 Identical clockwise and counter-clockwise rotational characteristics. 适用于伺服电机、步进电机、机器手。 Is suitable in servo motor, Stepping Motor, Machinist.

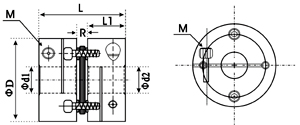

结构图：

选型指导:Ordering lnformation

例：MK–b39–10/16TT           MK：系列号，材料为铝合金           b39:b为夹紧型，39为外径尺寸39mm          10：d1轴径为10mm          16：d2轴径为16mm          n 请参考下图参数表 Example:MK–b39–10/16TT                   MK: Series NO, Material: Aluminum Alloy                  b39:b- Clamp Type, Outside dimension 39mm                  10:d1 Bore: 10mm                 16: d2 Bore: 16mm

MK型单节圆形膜片联轴器尺寸表
MK- Single-node Disc Plate Springs Type Flexible Coupling Dimensions
